PM VSD Screw Air Compressor

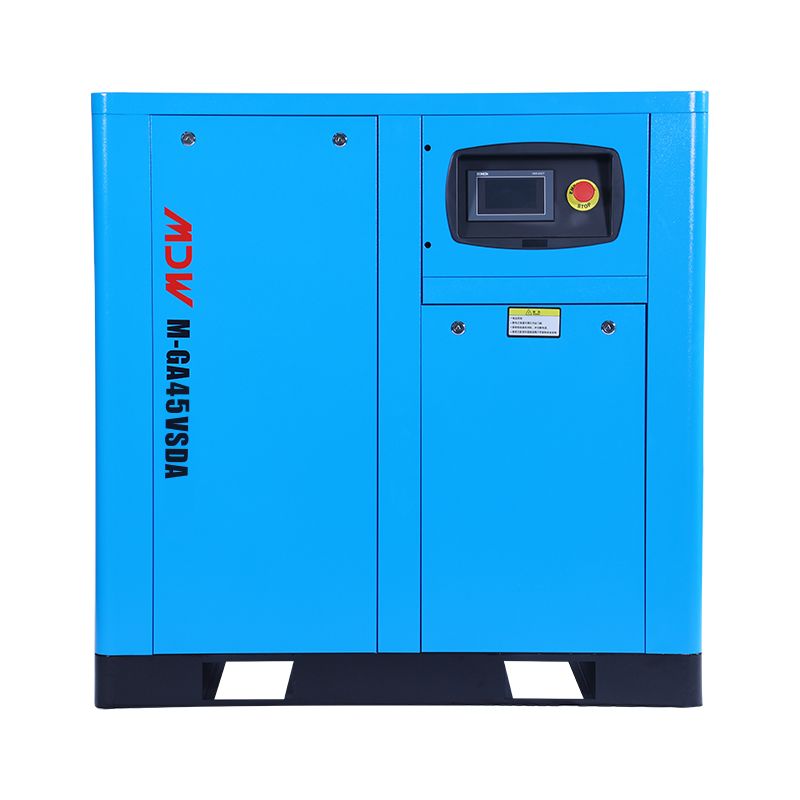

MDW-45KW/55KW Silent Permanent Magnetic VSD Air Compressor used water well drilling rig

PRODUCT PARAMETERS

Power
KW
Power
HP
Pressure
MPa
Volume flow
m³/min
Start ModeDrive ModeCooling Compression LevelNoise
db(A)
Voltage
V/PH/HZ
Weight
KG
Dimensions
(L*W*H)
mm
Outlet Diameter
imch/mm
45KW60HP0.72.22-7.4VSD Soft StartIntegrated Direct DriveAir CoolingSingle stage68±2380V/50HZ6231500*1000*1300G1 1/2"
0.82.16-7.2
12.04-6.8
55KW75HP0.73.15-10.5VSD Soft StartIntegrated Direct DriveAir CoolingSingle stage69±2380V/50HZ9801800*1200*1540G2"
0.82.88-9.6
12.79-9.3


PRODUCT ADVANTAGES

1.Long service life:

Inverter compressors can operate on rectified and filtered voltages, which means they typically have a longer service life than conventional compressors. In addition, the design of inverter compressors allows them to adapt to a wider range of voltage fluctuations, reducing equipment damage caused by voltage problems.

2.Smooth start-up:

The variable frequency compressor has a small starting current and a smooth starting process, which reduces the impact on the power grid when the equipment starts, reduces equipment wear and extends the service life of the equipment.

3.Strong adaptability:

The inverter compressor has a stronger adaptability to voltage and can maintain stable operation under voltage fluctuations, reducing equipment failures caused by voltage problems.

COMPANY PROFILE

PACKING & SHIPPING

MDW-45KW/55KW Silent Permanent Magnetic VSD Air Compressor used water well drilling rig
