PM VSD Screw Air Compressor

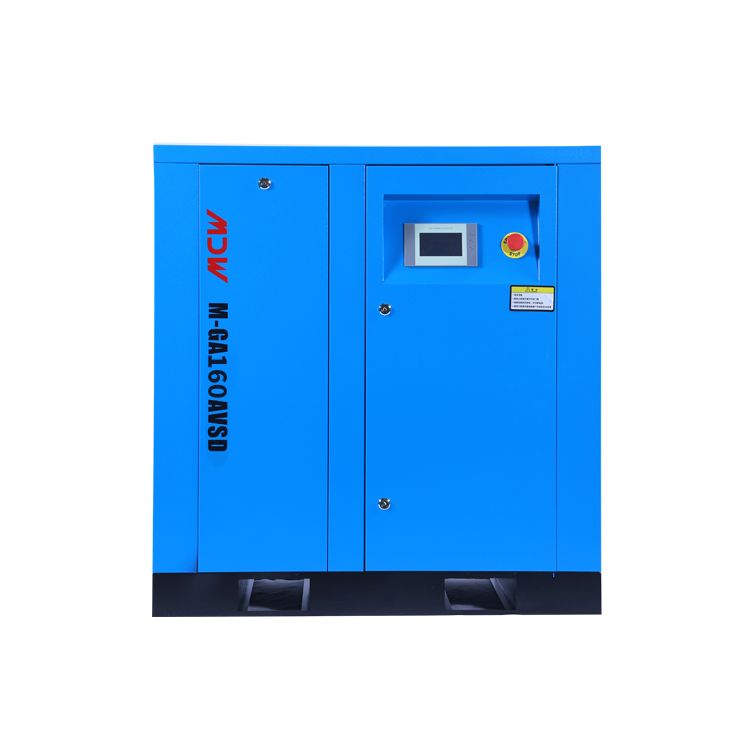

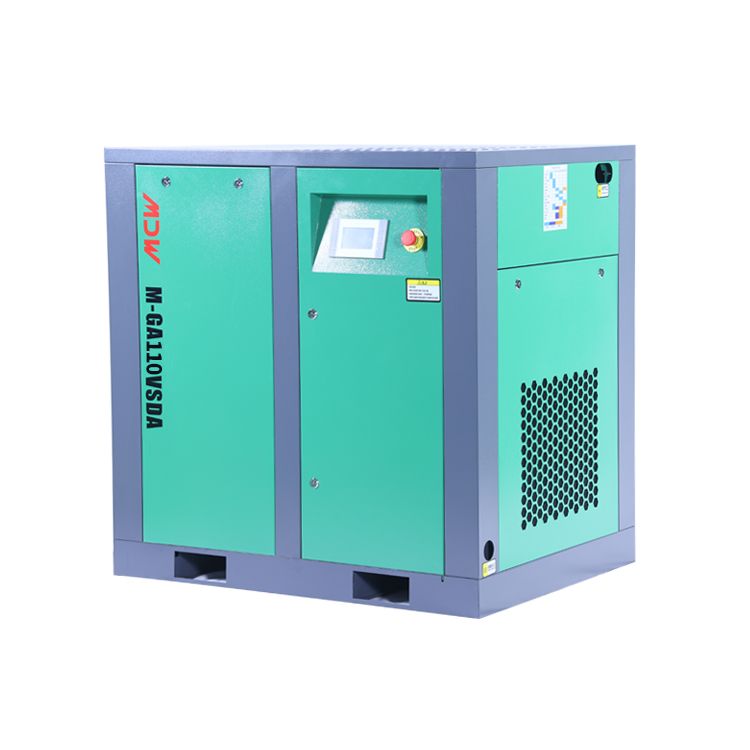

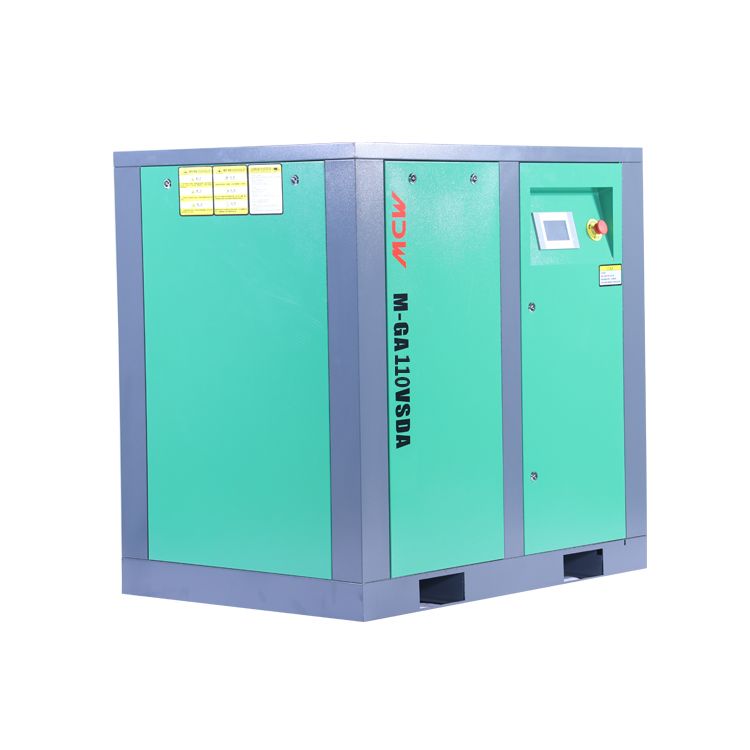

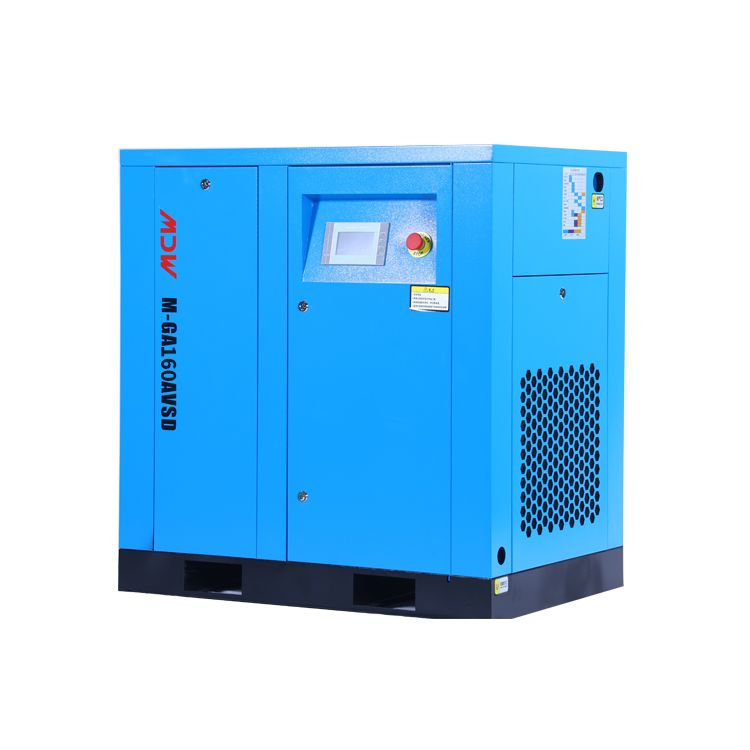

MDW-132KW/160KW Vertical Permanent Magnetic VSD Air Compressor used automotive industry

PRODUCT PARAMETERS

Power
KW
Power
HP
Pressure
MPa
Volume flow
m³/min
Start ModeDrive ModeCooling Compression LevelNoise
db(A)
Voltage
V/PH/HZ
Weight
KG
Dimensions
(L*W*H)
mm
Outlet Diameter
imch/mm
132KW175HP0.77.29-24.3VSD Soft StartIntegrated Direct DriveAir CoolingSingle stage75±2380V/50HZ25802500*1470*1840DN65
0.87.14-23.8
16.63-22.1
160KW200HP0.78.62-28.7VSD Soft StartIntegrated Direct DriveAir CoolingSingle stage75±2380V/50HZ28802500*1470*1840DN80
0.88.28-27.6
17.38-24.6


PRODUCT ADVANTAGES

1. Power saving

Compared with traditional fixed-frequency compressors, variable-frequency compressors can adjust the operating frequency of the compressor according to the gas demand to achieve the best energy efficiency ratio.

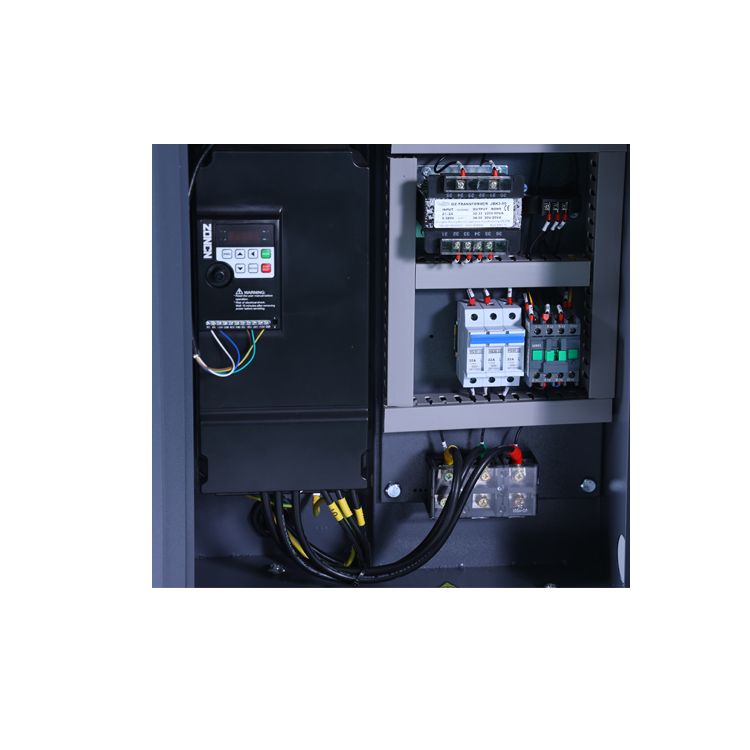

By installing a frequency converter controller on the compressor motor, it can achieve efficient operation under different gas consumption conditions and save electricity. At the same time, the current when the variable-frequency compressor starts will be lower than that of the traditional fixed-frequency compressor, so the starting current of the variable-frequency compressor is very small, which helps save electricity bills.

2. Excellent protection performance:

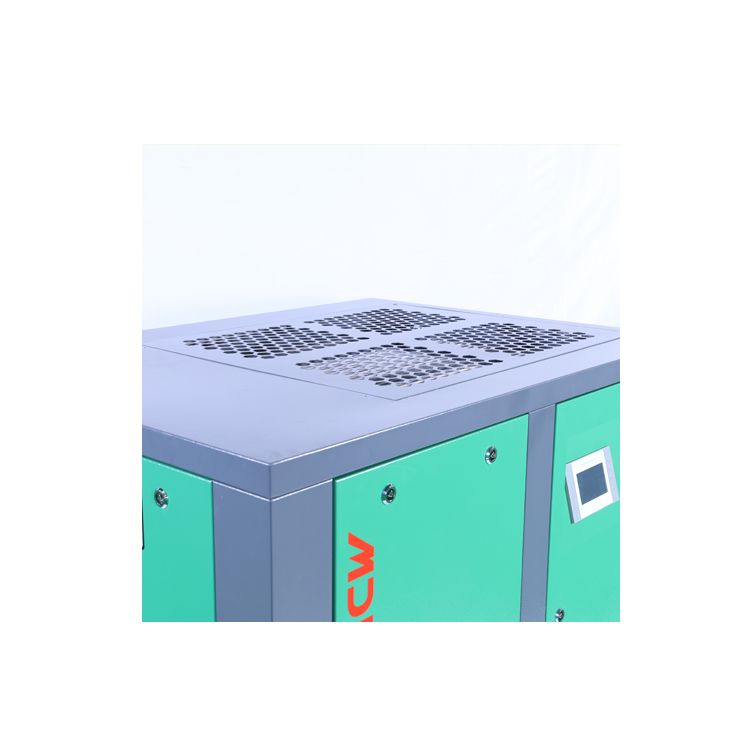

In the body design, we have fully considered the needs of waterproof, dustproof and soundproof. The waterproof function ensures stable operation in humid environments, the dustproof design prevents dust from damaging the internal structure, and the soundproof design significantly reduces noise, creating a quiet and comfortable working environment for employees.

3. Rotor maintenance is crucial:

The compressor rotor is the core component of the compressor, and its performance directly affects the overall operation. Therefore, we strongly recommend users to carry out regular professional inspection and maintenance of the rotor to ensure its stable operation and extend its service life.

COMPANY PROFILE

PACKING & SHIPPING

MDW-132KW/160KW Vertical Permanent Magnetic VSD Air Compressor used  automotive industry
